Robot joints and actuation
19.2:1 planetary reduction trades motor speed for torque at a joint or drive, through a 8 mm output shaft.
Engineering inference
goBILDA

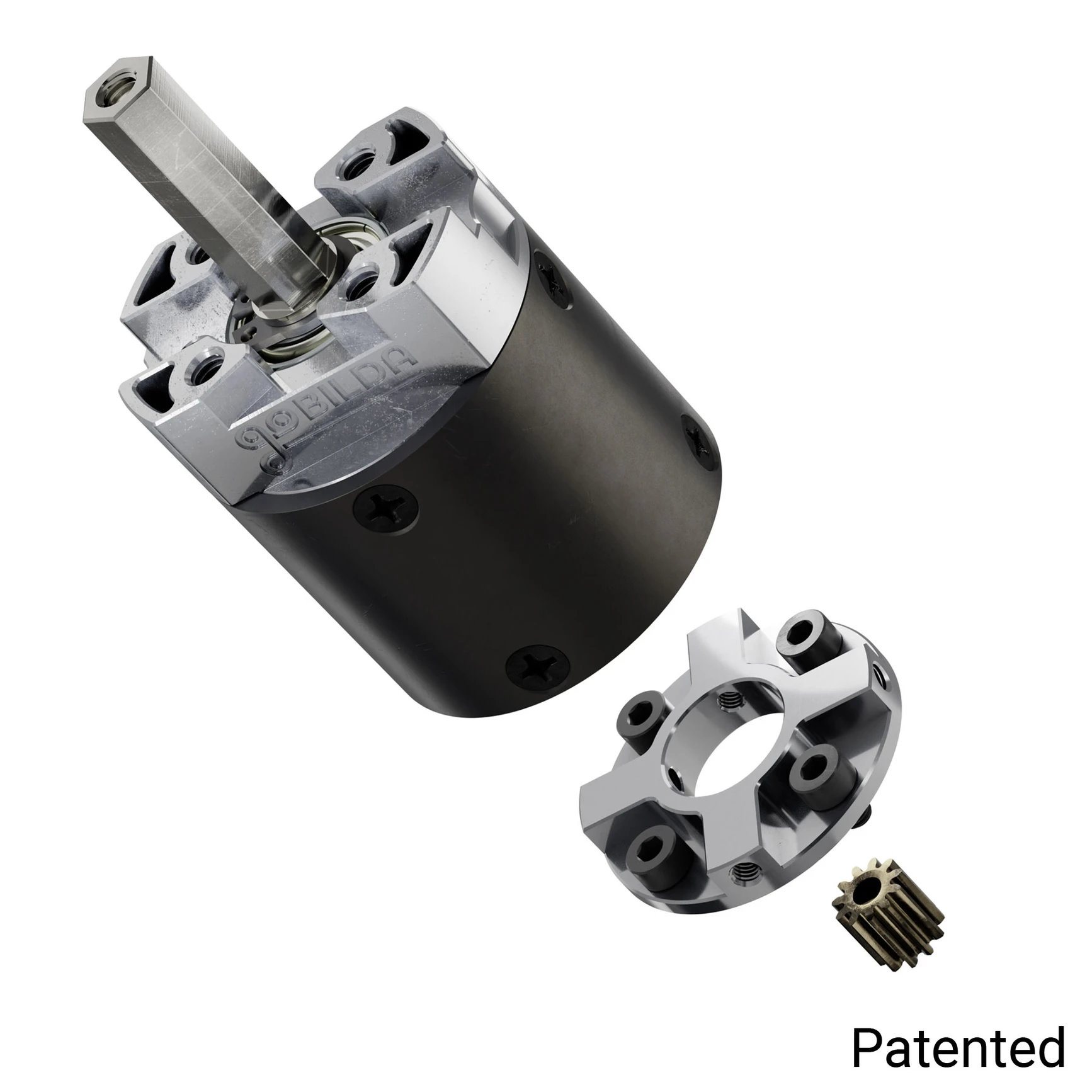

goBILDA 5103 Planetary Gearbox 19.2:1
goBILDA 5103-series 2-stage planetary gearbox, 19.2:1 (exactly 19.2:1), steel gears, sold as the replacement gearbox for 5203 Yellow Jacket motors: Ø36 mm × 41.6 mm body, 8 mm REX output shaft 23.5 mm long, M4 goBILDA pattern on the face, 194 g. No torque or backlash rating is published.
5103-0024-0019Development boardPrice$34.99www.gobilda.com · in stock
Buy at www.gobilda.com Motor essentials
Facts about the complete product. Unknown values remain open design questions.
- Gear reduction
- 19.2:1
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
Mobile robot drive trains
19.2:1 planetary stage keeps wheel speed usable while multiplying drive-motor torque.
Engineering inferenceNo-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
FAQ
goBILDA 5103 Planetary Gearbox 19.2:1 questions
How much does the goBILDA 5103 Planetary Gearbox 19.2:1 cost?
From $34.99 at www.gobilda.com. Prices are observed unit prices before tax and shipping.
What are the goBILDA 5103 Planetary Gearbox 19.2:1 dimensions?
36 × 36 × 41.6 mm. A STEP model is available for enclosure fit checks.
Where does this goBILDA 5103 Planetary Gearbox 19.2:1 data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
