goBILDA Saturn 5304-8002-0188

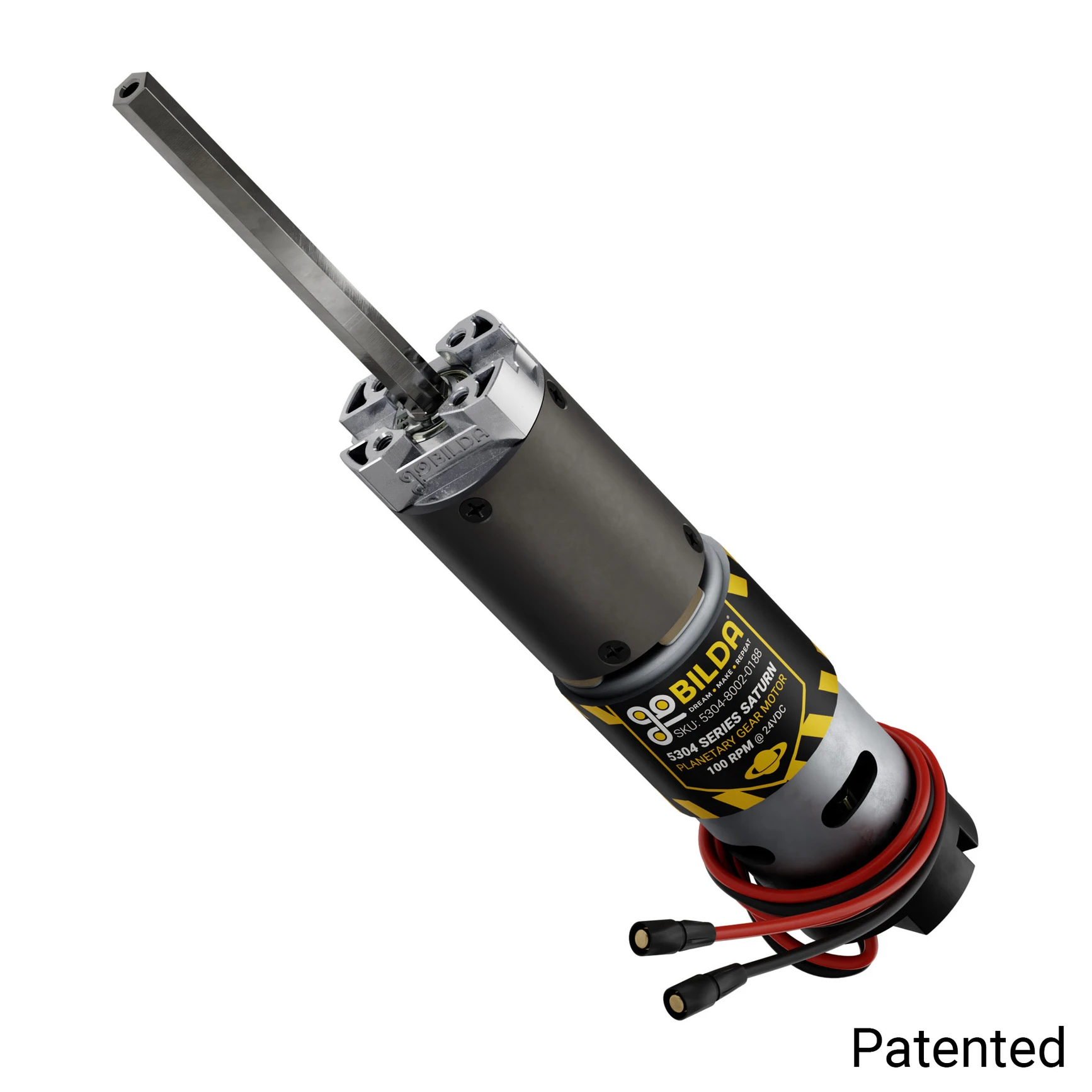

goBILDA 5304-8002-0188 Saturn is a 24 V RS-560 brushed DC planetary gearmotor with 188:1 steel gearing: 100 rpm no-load, 118.2 kg·cm rated torque at 82 rpm / 11 A and 658 kg·cm stall (60 A) at 24 V, 8 mm REX shaft 79.5 mm long, Ø38.5 mm head, 146.5 mm long, 595 g, magnetic quadrature encoder at 5281.1 PPR on the output shaft.
5304-8002-0188MotorPrice$61.99www.gobilda.com · in stock
Buy at www.gobilda.com Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
- Rated voltage
- 24 V
- No-load speed
- 100 RPM
- Stall torque
- 64.52776 N·m
- Gear reduction
- 188:1
- Shaft diameter
- 8 mm
- Encoder
- relative magnetic Hall-effect quadrature encoder, 5281.1 PPR at output shaft
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 38.5 × 38.5 × 226 mm
- Verification
- generated
- Envelope complete
- Yes
Mechanical interface
Mechanical output interface
The motor body, transmission and output shaft have separate roles in a mechanism.
- Motor type
- gearmotor
- Gear reduction
- 188:1
- Shaft diameter
- 8 mm
- Body diameter
- 38.5 mm
- Body length
- 146.5 mm
- Encoder
- relative magnetic Hall-effect quadrature encoder, 5281.1 PPR at output shaft
Reported body dimensions may exclude the shaft, terminals and other protrusions. Use the manufacturer drawing to establish the complete mounting and clearance envelope.
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
- Rated voltage
- 24 V
- No-load speed
- 100 RPM
- No-load current
- 1.3 A
- Stall torque
- 64.52776 N·m
- Stall current
- 60 A
- Continuous rated torque
- 11.59146 N·m
- Rated-load speed
- 82 RPM
- Rated current
- 11 A
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 38.5 mm
- Width
- 38.5 mm
- Reported height / thickness
- 226 mm
- Mounting hole records
- 8
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| motor3.5 mm FH-MC bullet connectors, 470 mm of 18 AWG wire | 2 | Unknown | — |
| encoder4-position JST XH [FH-MC] encoder connector | 4 | Unknown | — |
