Grasping and manipulation
parallel gripper that opens to 71.4 mm, servo-driven — bolts to the end of an arm to pick and place.
Engineering inference
ServoCity (goBILDA)
goBILDA Parallel Gripper Kit (servo-driven)

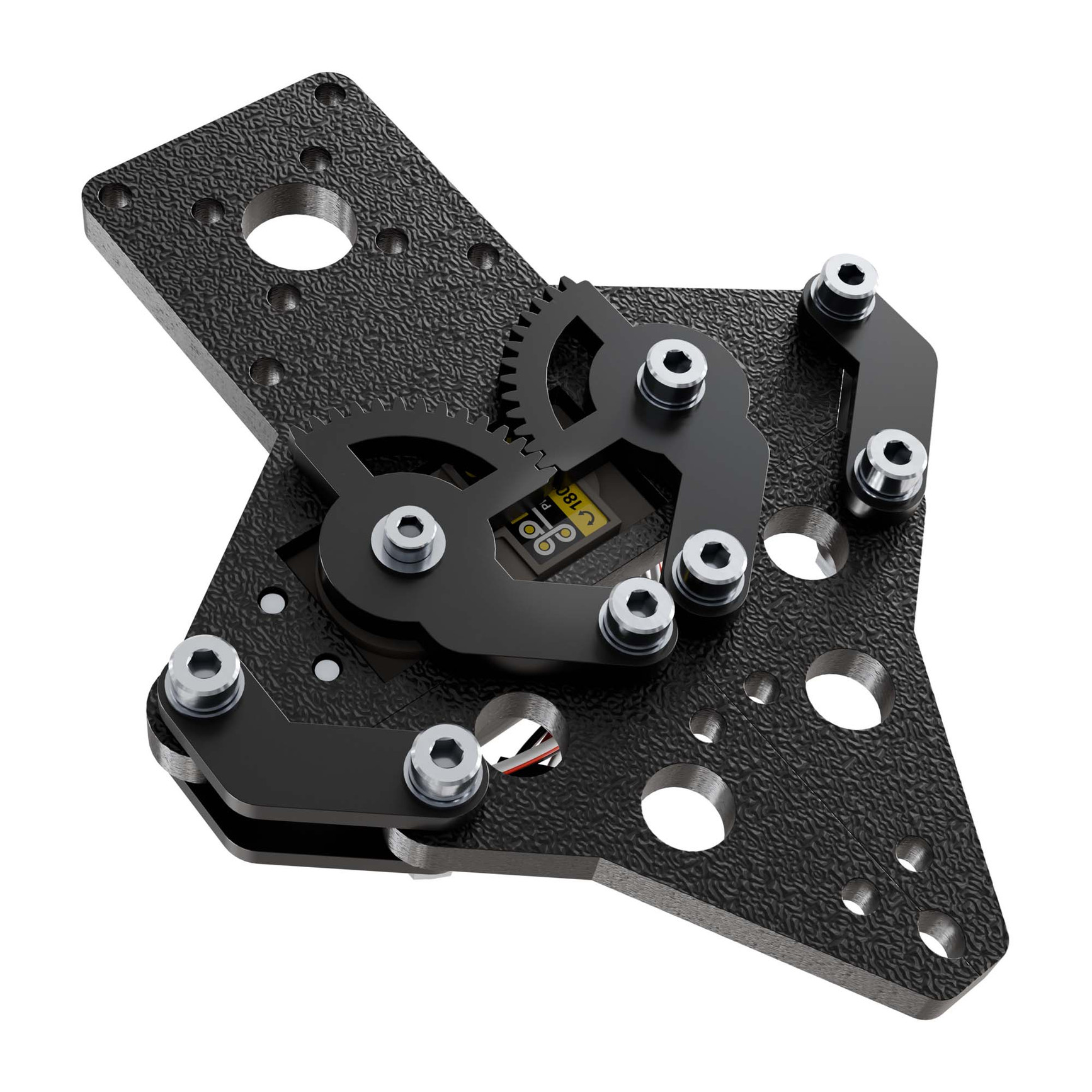

goBILDA / ServoCity 3219-0001-0002 servo-driven parallel gripper kit: jaws stay parallel through gears and linkages, open to 71.4 mm between jaws (147.9 mm outside), 104.1 mm wide closed, 49 mm deep; includes a goBILDA 2000-series Proton servo; mounts on the goBILDA 16 mm square pattern and 14 mm centre hole; 133 g with servo, plastic.
3219-0001-0002Development boardPrice$34.99www.servocity.com · in stock
Buy at www.servocity.com Motor essentials
Facts about the complete product. Unknown values remain open design questions.
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
FAQ
goBILDA Parallel Gripper Kit questions
How much does the goBILDA Parallel Gripper Kit cost?
From $34.99 at www.servocity.com. Prices are observed unit prices before tax and shipping.
What are the goBILDA Parallel Gripper Kit dimensions?
104.1 × 49 × 118.3 mm. A STEP model is available for enclosure fit checks.
Where does this goBILDA Parallel Gripper Kit data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
Sources
- goBILDA Parallel Gripper Kit (servo-driven) datasheet — ServoCity (goBILDA)
- www.servocity.com listing
