Grasping and manipulation
Five-finger dexterous hand with 20 active DoF, 15 N fingertip force and 100 mm maximum grasping diameter, mounted on an arm flange for dexterous picking and teleoperation.
Engineering inference
WUJI TECH
Wuji Hand 20-DoF Dexterous Hand
Wuji Hand is a five-finger bionic dexterous hand with 20 active degrees of freedom on self-locking direct-drive rotary joints (FOC control, 1,000 Hz per axis), 15 N fingertip force, 100 mm maximum grasping diameter, 10 kg whole-hand static load, USB 2.0 control, 12–20 V supply, 580 g, 201 × 75 × 50 mm, aluminum shell.
Wuji HandDevelopment boardPrice$16,000.00aifitlab.com · out of stock
Buy at aifitlab.com Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 201 × 75 × 50 mm
- Verification
- generated
- Envelope complete
- Yes
Grip & drive
Grip, drive and mounting
How wide it opens, what drives it and how it mounts.
- Effector type
- dexterous hand
- Degrees of freedom
- 20
- Max jaw opening
- 100 mm
- Grip force
- 15 N
- Payload
- 10 kg
- Drive
- self-locking rotary direct-drive joints (FOC vector control)
- Actuator
- yes — 20 integrated joint drives
- Control
- USB 2.0 (Type-C), position control, 1000 Hz × 20 axes
- Mount pattern
- grooved flange adapter (M5×10 / M6×10 screws) with four-claw twist-lock latch
- Weight
- 580 g
| Connector | Type |
|---|---|
| usb | USB Type-C data connection to the host |
| power | XT30 external power interface |
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 201 mm
- Width
- 75 mm
- Reported height / thickness
- 50 mm
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| usbUSB Type-C data connection to the host | Unknown | Unknown | — |
| powerXT30 external power interface | 2 | Unknown | — |
Complete structured record
Every available field, including details beyond the summaries. Null means the value has not been established.
Sourcing & files
Supplier offers
US / USD is the target market. Observed price and stock are separate from a delivery quote.
aifitlab.com
US · USD
$16,000.00Minimum quantity unknown
- Observed stock
- out of stock
- Checked
- Oct 20, 2026, 05:36 AM UTC
- Delivery estimate
- Not quoted
This observation is stale or has no verified check time. Recheck with the supplier.
Visit supplier (opens in a new tab)Delivery depends on quantity, postal code and shipping method. A dispatch statement such as “ship today” is not an arrival estimate.
Design files and references
Each source keeps its own verification status. Confirm the part revision and file contents before using it in a design.
Datasheet (opens in a new tab)
Manufacturer reference

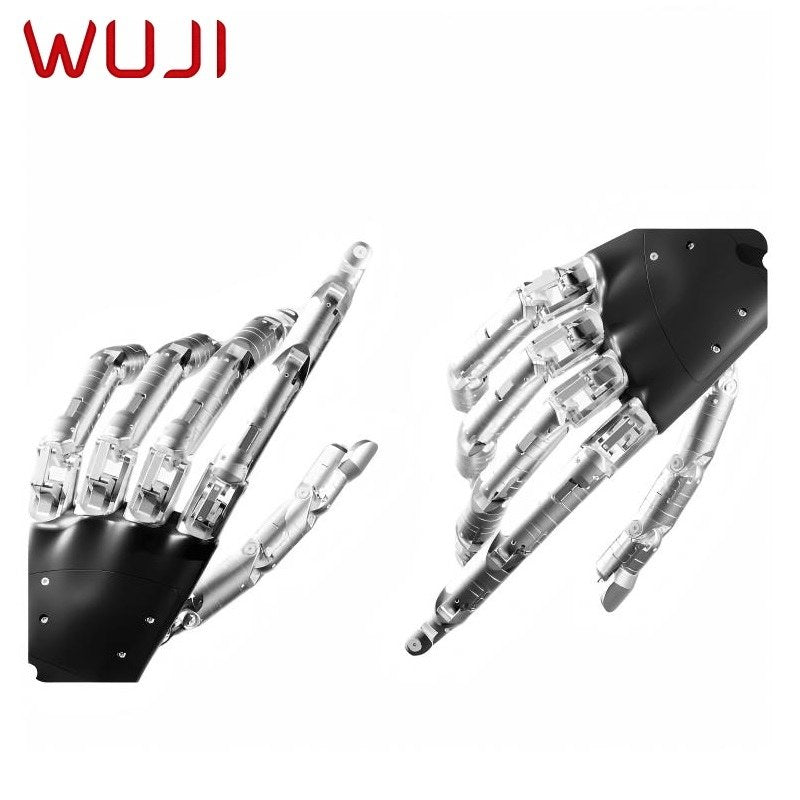

Wuji Hand — product photo (AIFIT Lab) (opens in a new tab)
Unverified reference
inspected: five-finger metallic robot hand on a black palm base, WUJI logo; reseller listing photo
STEP (generated from datasheet drawing) — link unavailable
Generated asset
cad_check passed
Generated envelope geometry may also exist for this record. It does not replace manufacturer CAD or a verified electrical land pattern.
Source evidence
Document provenance, retrieval dates and the field groups supported by each source.
Supports: spec.geometry.cad.bbox.height_mm, spec.geometry.cad.bbox.length_mm, spec.geometry.cad.bbox.width_mm, spec.geometry.cad.envelope_complete, spec.geometry.cad.mesh_path, spec.geometry.cad.step_path, spec.geometry.cad.verification, spec.geometry.dimensions.height_mm, spec.geometry.dimensions.length_mm, spec.geometry.dimensions.width_mm, spec.geometry.other.weight_g, spec.provides.actuator_included, spec.provides.control_interface, spec.provides.dof, spec.provides.drive, spec.provides.effector_type, spec.provides.features, spec.provides.grip_force_n, spec.provides.jaw_opening_max_mm, spec.provides.mount_pattern, spec.provides.payload_kg, spec.usage.connectors, spec.usage.pinout_complete
sha256 337e45f6d1f195f359f3fb707ef66382e0f0ace85edff10d267710f80ee4432a
Supports: offers
FAQ
Wuji Hand 20-DoF Dexterous Hand questions
How much does the Wuji Hand 20-DoF Dexterous Hand cost?
From $16,000 at aifitlab.com. Prices are observed unit prices before tax and shipping.
What are the Wuji Hand 20-DoF Dexterous Hand dimensions?
201 × 75 × 50 mm. A STEP model is available for enclosure fit checks.
Where does this Wuji Hand 20-DoF Dexterous Hand data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
