YDLIDAR T-mini Plus 360° ToF Lidar
YDLIDAR T-mini Plus: 360° 2D ToF lidar, 0.05–12 m at 80 % reflectivity and 0.05–4 m at 10 %, 20 mm systematic error, 4000 Hz ranging, 6 Hz default scan (6–12 Hz by software), 0.54° angle resolution, 3.3 V UART 230400 baud, 5 V / 340 mA, 60 klux, 45 g, 38.6 × 38.6 × 33.9 mm.
T-mini PlusDevelopment boardPrice$85.00aifitlab.com · preorder
Buy at aifitlab.com Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
ROS 2 robot builds
A maker-published or maker-linked ROS 2 driver means it drops into a ROS 2 / Nav2 stack without a custom node.
Engineering inferenceNo-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 38.6 × 38.6 × 33.9 mm
- Verification
- generated
- Envelope complete
- Yes
Range & scan
Range, scan and interface
How far it sees, how fast it scans, and how the robot reads it.
- Lidar type
- 2D scanning
- Ranging method
- dToF
- Min range
- 0.05 m
- Max range
- 12 m
- Max range rated at reflectivity
- 80 %
- Accuracy (±)
- 20 mm
- Scan frequency
- 6 Hz
- Sample rate
- 4,000 Hz
- Angular resolution
- 0.54 °
- Horizontal field of view
- 360 °
- Wavelength
- 905 nm
- Laser safety class
- Class 1 (IEC 60825-1)
- Interface
- UART
- ROS 2 driver
- Yes
- ROS drivers
- ydlidar_ros2_driver (ROS 2)
- Ambient light rating
- 60 klux
- Weight
- 45 g
- Supply voltage
- 4.8–5.2 V
| Pin / wire | Position | Role | Notes |
|---|---|---|---|
| VCC | power in | Power supply — Positive | |
| Tx | uart tx | Output — System serial output | |
| Rx | uart rx | Input — System serial port Input | |
| GND | ground | Earthing — Negative |
| Connector | Type |
|---|---|
| gh125_4p | GH1.25-4P (1.25 mm, 4-pin): VCC, Tx, GND, Rx |
Max range is the printed figure at the stated target reflectivity; accuracy is the typical datasheet value. Scan frequency is the default rotation or frame rate.
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
- Product operating range
- -10 to 45 °C
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 38.6 mm
- Width
- 38.6 mm
- Reported height / thickness
- 33.9 mm
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| gh125_4pGH1.25-4P (1.25 mm, 4-pin): VCC, Tx, GND, Rx | 4 | 1.25 mm | — |
Complete structured record
Every available field, including details beyond the summaries. Null means the value has not been established.
Sourcing & files
Supplier offers
US / USD is the target market. Observed price and stock are separate from a delivery quote.
aifitlab.com
US · USD
$85.00Minimum quantity unknown
- Observed stock
- preorder
- Checked
- Oct 17, 2026, 10:10 AM UTC
- Delivery estimate
- Not quoted
This observation is stale or has no verified check time. Recheck with the supplier.
Visit supplier (opens in a new tab)Delivery depends on quantity, postal code and shipping method. A dispatch statement such as “ship today” is not an arrival estimate.
Design files and references
Each source keeps its own verification status. Confirm the part revision and file contents before using it in a design.
Datasheet (opens in a new tab)
Manufacturer reference

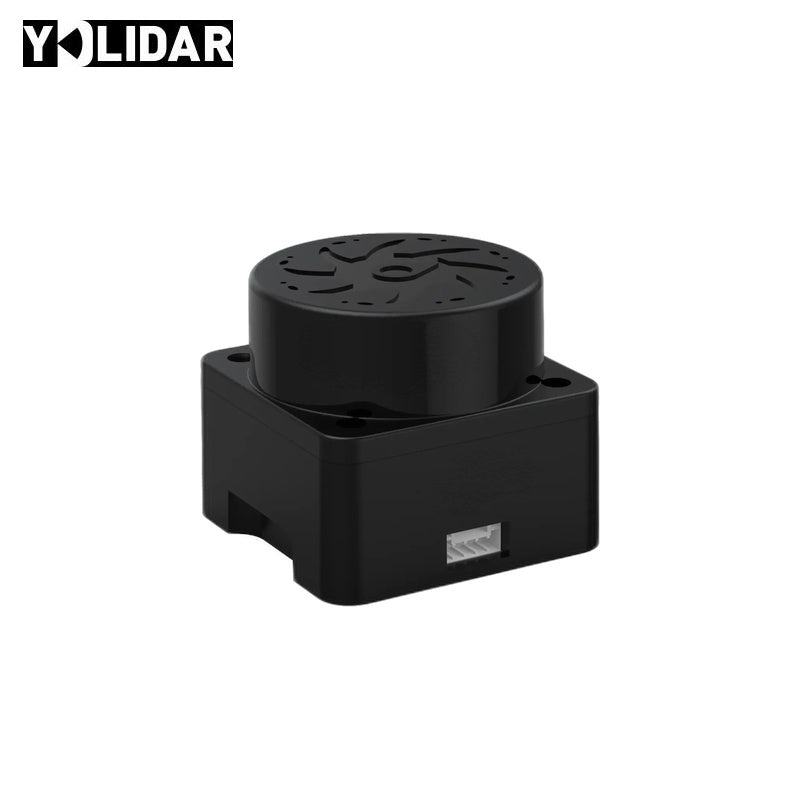

YDLIDAR T-mini Plus — product photo (opens in a new tab)
Unverified reference
inspected: YDLIDAR-branded render, square black base, round rotor with vent pattern, GH1.25 socket; distributor-hosted
STEP (generated from datasheet drawing) — link unavailable
Generated asset
cad_check passed
Generated envelope geometry may also exist for this record. It does not replace manufacturer CAD or a verified electrical land pattern.
Source evidence
