Connected IoT devices and wireless sensor nodes
On-board radio: Bluetooth 5 (2 Mbps, Long Range); IEEE 802.15.4 (Thread, Zigbee).
Engineering inference
Arduino S.r.l.

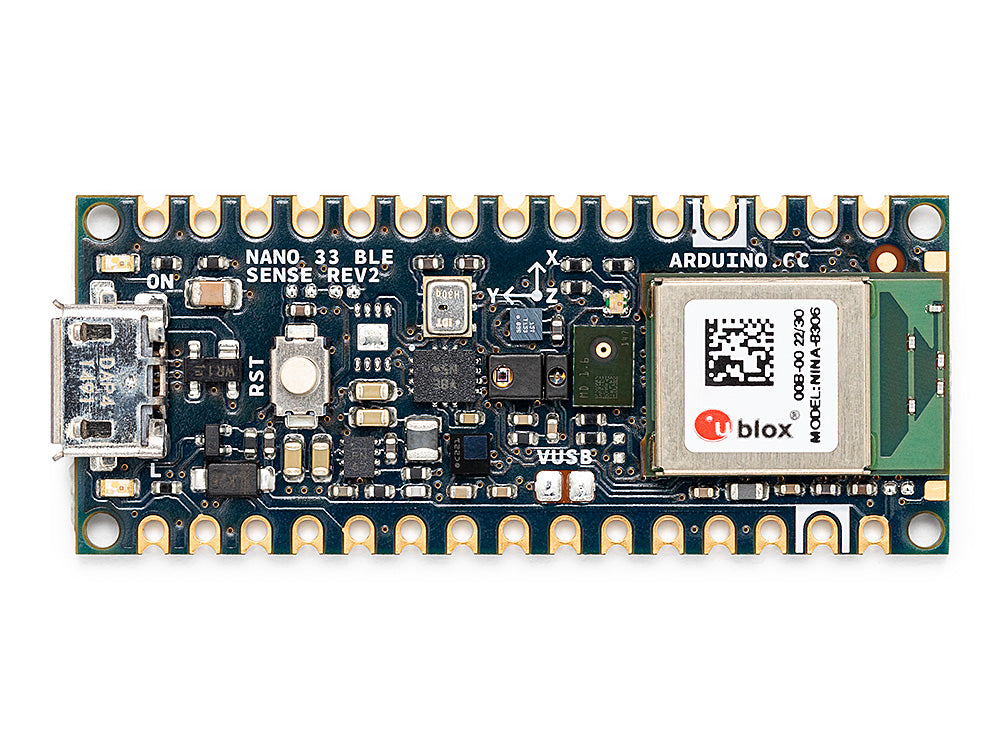

Arduino Nano 33 BLE Sense Rev2
Nano-format sensor board on u-blox NINA-B306 (nRF52840: 64 MHz Cortex-M4F, 1 MB flash, 256 kB RAM, Bluetooth 5 / 802.15.4) with 9-axis IMU (BMI270 accel+gyro + BMM150 magnetometer), LPS22HB barometer, HS3003 humidity/temperature, APDS-9960 gesture/proximity/colour, MP34DT06 microphone; 3.3 V IO, VIN up to 21 V.
ABX00069Development boardPrice$38.70Arduino Store (USA) · in stock
Buy at Arduino Store (USA) Board essentials
Facts about the complete product. Unknown values remain open design questions.
- Exposed GPIO
- 22
- Board I/O voltage
- 3.3 V
- Board flash capacity
- 1 MiB
- Board SRAM capacity
- 256 KiB
- Board operating range
- -40 to 85 °C
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
Sensor fusion and on-device ML (TinyML)
On-board imu, microphone alongside the MCU — motion and audio data without extra wiring.
Engineering inferenceCustom USB devices (HID, MIDI, serial)
USB is on the main chip (nRF52840), so the board can enumerate as a keyboard, MIDI device or CDC serial port.
Engineering inferenceLearning and fast prototyping
Programs from Arduino IDE, Arduino Cloud.
Engineering inferenceInside this board
The board is the parent product. Each chip has its own memory, pins, capabilities and thermal limits.
main processor
nRF52840-QIAA
Nordic Semiconductor
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--mcu- Architecture
- Arm Cortex-M4 with FPU
- Documented clock
- 64 MHz
- Chip / in-package flash
- 1 MiB
- On-chip SRAM
- 256 KiB
wireless module
NINA-B306
u-blox
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--m1imu
BMI270
Bosch Sensortec
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u2magnetometer
BMM150
Bosch Sensortec
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u7pressure sensor
LPS22HBTR
STMicroelectronics
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u9humidity sensor
HS3003
Renesas
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u8gesture light sensor
APDS-9960
Broadcom
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u5microphone
MP34DT06JTR
STMicroelectronics
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u3buck converter
MP2322GQH
Monolithic Power Systems
ae8c0bae-9b40-5f00-b150-d0c59b8edcb5--u6FAQ
Arduino Nano 33 BLE Sense Rev2 questions
What microcontroller does the Arduino Nano 33 BLE Sense Rev2 use?
The Arduino Nano 33 BLE Sense Rev2 is built around the nRF52840-QIAA, alongside NINA-B306, BMI270, BMM150, LPS22HBTR.
How many GPIO pins does the Arduino Nano 33 BLE Sense Rev2 have?
22 GPIO pins are exposed. Xirkit documents 35 board pins, 25 of them with pin-level electrical limits.
Are the Arduino Nano 33 BLE Sense Rev2 I/O pins 5 V tolerant?
No. The I/O pins are not 5 V tolerant — they run at 3.3 V logic; use a level shifter for 5 V signals. Input-high threshold: 2.31–3.3 V.
How much current can a Arduino Nano 33 BLE Sense Rev2 GPIO pin source?
Documented output-high current per pin: 1–4 mA. Values are traced to the chip datasheet; see the pinout table for per-pin limits and conditions.
What voltage powers the Arduino Nano 33 BLE Sense Rev2?
Supply range 4.8–21 V. Power inputs: VIN (?–21 V).
How much does the Arduino Nano 33 BLE Sense Rev2 cost?
From $38.7 at Arduino Store (USA). Prices are observed unit prices before tax and shipping.
What are the Arduino Nano 33 BLE Sense Rev2 dimensions?
43.16 × 17.76 mm. A STEP model is available for enclosure fit checks.
Which interfaces does the Arduino Nano 33 BLE Sense Rev2 support?
gpio, pwm, spi, led, pin_select, analog, adc, dac, i2c, control, uart, debug, usb.
How do I program the Arduino Nano 33 BLE Sense Rev2?
Supported frameworks: Arduino IDE, Arduino Cloud.
Where does this Arduino Nano 33 BLE Sense Rev2 data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
Data & sources
Where these values come from
- Arduino Nano 33 BLE Sense Rev2 datasheet — Arduino S.r.l.
- Arduino Store (USA) listing
