Unitree Dex1-1 Parallel Gripper
Unitree Dex1-1 is a two-finger parallel gripper for the G1 humanoid: 90 mm stroke, 5–120 N adjustable grip force, 50–375 mm/s, 0.1 mm fingertip resolution, 24–64 V supply over 6 Mbps RS-485 at 1 kHz, 15-bit absolute encoder, 550 g, 143 × 78 × 67 mm.
Dex1-1Development boardPrice$370.00aifitlab.com · in stock
Buy at aifitlab.com Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 143 × 78 × 67 mm
- Verification
- generated
- Envelope complete
- Yes
Grip & drive
Grip, drive and mounting
How wide it opens, what drives it and how it mounts.
- Effector type
- parallel gripper
- Degrees of freedom
- 1
- Max jaw opening
- 90 mm
- Grip force
- 120 N
- Payload
- 20 kg
- Drive
- motor
- Actuator
- yes — integrated motor with 15-bit absolute encoder
- Control
- RS-485 (6 Mbps, 1000 Hz)
- Mount pattern
- tapped M3 holes: 4×M3 depth 8 and 4×M3 depth 5 on the mounting face
- Weight
- 550 g
| Connector | Type |
|---|---|
| bus | high-speed RS-485 bus with a 485-to-USB adapter board in the box |
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
- Product operating range
- -20 to 60 °C
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 143 mm
- Width
- 78 mm
- Reported height / thickness
- 67 mm
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| bushigh-speed RS-485 bus with a 485-to-USB adapter board in the box | Unknown | Unknown | — |
Complete structured record
Every available field, including details beyond the summaries. Null means the value has not been established.
Sourcing & files
Supplier offers
US / USD is the target market. Observed price and stock are separate from a delivery quote.
aifitlab.com
US · USD
$370.00Minimum quantity unknown
- Observed stock
- in stock
- Checked
- Oct 20, 2026, 05:42 AM UTC
- Delivery estimate
- Not quoted
This observation is stale or has no verified check time. Recheck with the supplier.
Visit supplier (opens in a new tab)Delivery depends on quantity, postal code and shipping method. A dispatch statement such as “ship today” is not an arrival estimate.
Design files and references
Each source keeps its own verification status. Confirm the part revision and file contents before using it in a design.
Datasheet (opens in a new tab)
Manufacturer reference

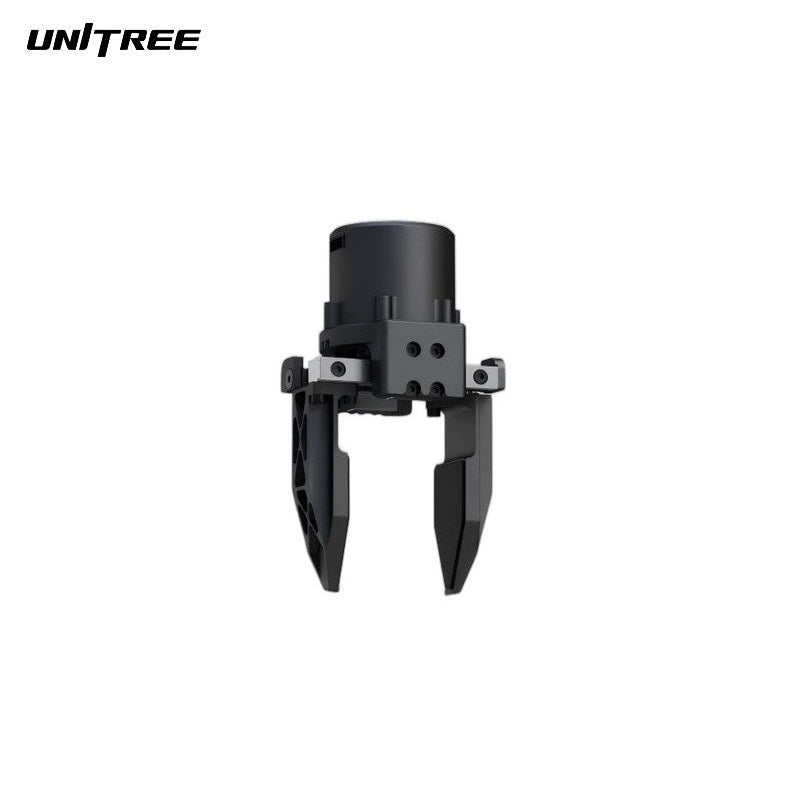

Unitree Dex1-1 gripper — product photo (AIFIT Lab) (opens in a new tab)
Unverified reference
inspected: black two-finger parallel gripper with cylindrical motor housing on top, mounting face with four screw holes, UNITREE logo; reseller listing photo
STEP (generated from datasheet drawing) — link unavailable
Generated asset
cad_check passed
Generated envelope geometry may also exist for this record. It does not replace manufacturer CAD or a verified electrical land pattern.
Source evidence
Document provenance, retrieval dates and the field groups supported by each source.
Supports: spec.constraints.thermal.operating_temp_max_c, spec.constraints.thermal.operating_temp_min_c, spec.geometry.cad.bbox.height_mm, spec.geometry.cad.bbox.length_mm, spec.geometry.cad.bbox.width_mm, spec.geometry.cad.envelope_complete, spec.geometry.cad.mesh_path, spec.geometry.cad.step_path, spec.geometry.cad.verification, spec.geometry.dimensions.height_mm, spec.geometry.dimensions.length_mm, spec.geometry.dimensions.width_mm, spec.geometry.other.weight_g, spec.provides.actuator_included, spec.provides.control_interface, spec.provides.dof, spec.provides.drive, spec.provides.effector_type, spec.provides.features, spec.provides.grip_force_n, spec.provides.jaw_opening_max_mm, spec.provides.mount_pattern, spec.provides.payload_kg, spec.usage.connectors, spec.usage.pinout_complete
sha256 9ced8cd4ad77d42db2f670911975fe7a37d34c6ce7890c23fb597c85eda00fe9
Supports: offers
Related parts
Similar to the Unitree Dex1-1 Parallel Gripper
BrainCo Revo 2 Dexterous HandBrainCo · $5,400DFRobot 2-DoF Robot Gripper (0–54 mm)DFRobot · $9goBILDA Parallel Gripper Kit (servo-driven)ServoCity (goBILDA) · $34.99goBILDA Rotating-Jaw Gripper Kit (servo-driven)ServoCity (goBILDA) · $29.99Pololu Micro Gripper Kit (position feedback)Pololu · $29.95ServoCity Sub-Micro Gripper KitServoCity · $6.99
FAQ
Unitree Dex1-1 Parallel Gripper questions
How much does the Unitree Dex1-1 Parallel Gripper cost?
From $370 at aifitlab.com. Prices are observed unit prices before tax and shipping.
What are the Unitree Dex1-1 Parallel Gripper dimensions?
143 × 78 × 67 mm. A STEP model is available for enclosure fit checks.
Where does this Unitree Dex1-1 Parallel Gripper data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
