goBILDA 5-Turn Servo 25-3 Speed
goBILDA 2000-0025-0503 5-turn dual-mode servo (25-3 Speed): 9.3 kg·cm stall and 115 rpm no-load at 6 V (4.8–7.4 V), 135:1 steel gears, 5 turns (1800°) of travel in servo mode or continuous rotation once reprogrammed, 25-tooth spline, dual ball bearings, 5 kΩ pot feedback, 60 g, standard size.
2000-0025-0503Development boardPrice$49.99www.gobilda.com · in stock
Buy at www.gobilda.com Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
- Rated voltage
- 7.4 V
- No-load speed
- 115 RPM
- Gear reduction
- 135:1
- Encoder
- 5 kΩ potentiometer
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 54.3 × 20 × 44.1 mm
- Verification
- generated
- Envelope complete
- No — some heights assumed
shaft_d=6 mm assumed: 25-tooth spline outer diameter not dimensioned on the drawing — 6 mm assumed for the CAD envelope only
Torque & control
Torque, speed and control
What the joint can deliver and how the controller talks to it.
- Type
- PWM_SERVO
- Gearbox
- steel gear train 135:1
- No-load speed
- 115 rpm
- Encoder
- 5 kΩ potentiometer
- Control
- PWM · position (5 Turns (1800°)), continuous rotation (reprogrammed)
| Connector | Type |
|---|---|
| servo | 3-pos TJC8 servo connector, 22 AWG, 300 mm lead |
Rated torque is continuous; peak torque is short-duration. Values with two figures (e.g. 24/48 V) are per supply voltage.
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
- Rated voltage
- 7.4 V
- No-load speed
- 115 RPM
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 54.3 mm
- Width
- 20 mm
- Reported height / thickness
- 44.1 mm
- Mounting hole records
- 4
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| servo3-pos TJC8 servo connector, 22 AWG, 300 mm lead | 3 | 2.54 mm | — |
Complete structured record
Every available field, including details beyond the summaries. Null means the value has not been established.
Sourcing & files
Supplier offers
US / USD is the target market. Observed price and stock are separate from a delivery quote.
www.gobilda.com
US · USD
$49.99Minimum quantity unknown
- Observed stock
- in stock
- Checked
- Oct 1, 2026, 10:00 PM UTC
- Delivery estimate
- Not quoted
Observed within the last 24 hours. Confirm the current supplier quote.
Visit supplier (opens in a new tab)Delivery depends on quantity, postal code and shipping method. A dispatch statement such as “ship today” is not an arrival estimate.
Design files and references
Each source keeps its own verification status. Confirm the part revision and file contents before using it in a design.
Datasheet (opens in a new tab)
Manufacturer reference

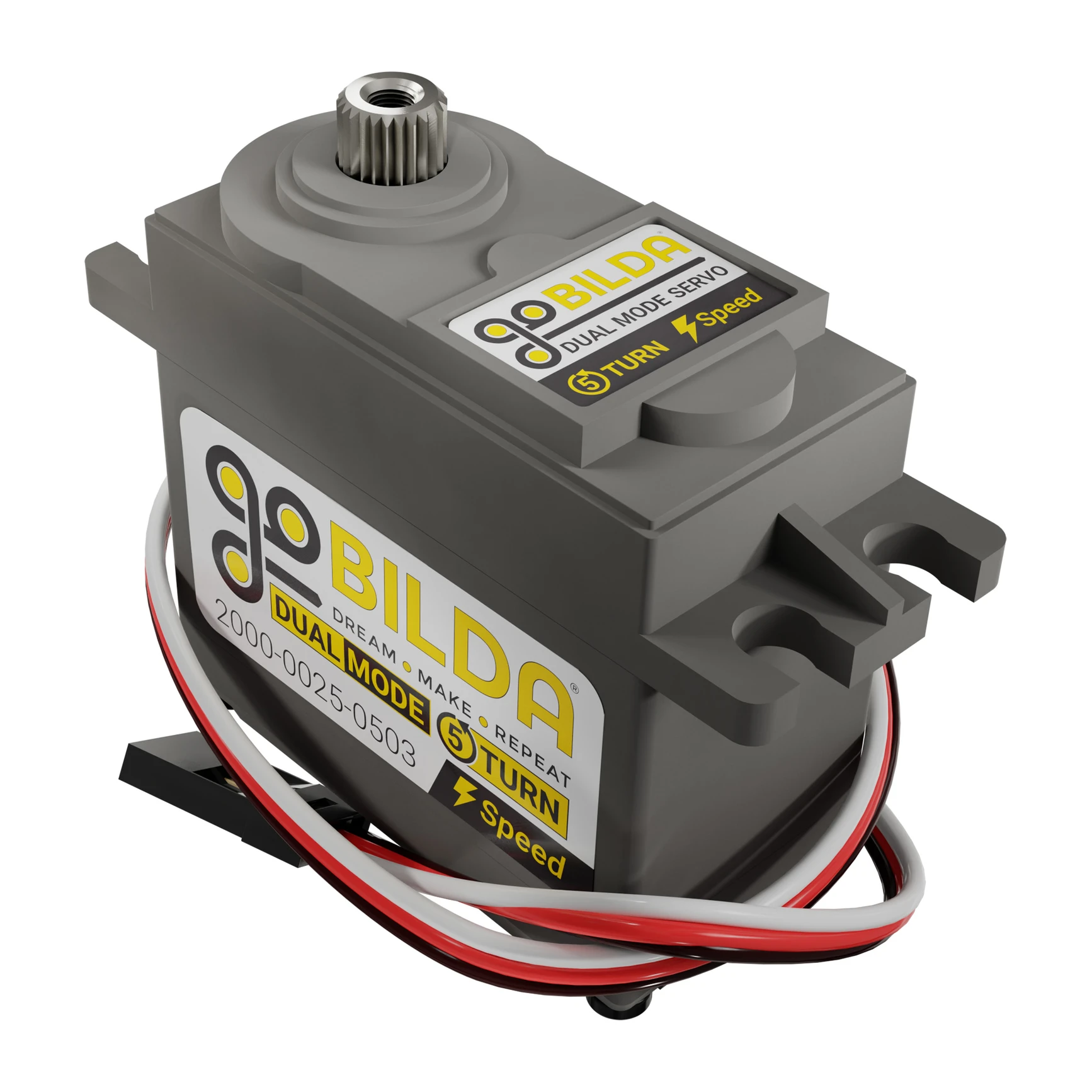

goBILDA 5-Turn Servo 25-3 Speed (2000-0025-0503) — product render (opens in a new tab)
Manufacturer reference
maker product image
STEP (generated from datasheet drawing) — link unavailable
