Robotics and motor control
4000 CPR quadrature feedback for closed-loop motor speed and position control, 4.75–27.6 V supply.
Engineering inference
Omron
Omron E6B2-CWZ6C Rotary Encoder
Omron E6B2-CWZ6C is a 40 mm incremental rotary encoder with A, B and Z phases from NPN open-collector outputs (30 V max, 35 mA sink), ordered at 10–2000 P/R (this record: 1000 P/R). It runs on 5–24 VDC at 80 mA max, responds to 100 kHz and 6000 r/min, and has a Ø6 mm shaft (30 N radial / 20 N thrust), IP50, −10 to 70 °C, 3 × M3 on Ø30 mm and 0.5 m pre-wired cable.
E6B2-CWZ6C 1000P/R 0.5MDevelopment boardPrice$613.53Mouser Electronics · in stock
Buy at Mouser Electronics Overview
Motor essentials
Facts about the complete product. Unknown values remain open design questions.
A good fit for
Guidance to help you shortlist. The basis is shown for each recommendation.
No-load speed, rated performance and stall limits describe different operating points. A stall specification is not a continuous operating rating.
3D model & CAD
3D model & CAD files
Generated from the datasheet's dimensioned drawing and measured against it. Download the STEP to check fit in your own enclosure.
- Envelope (L × W × H)
- 59 × 40 × 40 mm
- Verification
- generated
- Envelope complete
- Yes
Signals & mounting
Signals and mounting
Resolution, output stage and the pads you wire — what the controller needs to count it.
- Sensing
- optical
- Type
- incremental
- Resolution
- 4,000 CPR
- Channels
- A, B, Z
- Output
- NPN open-collector
- Supply voltage
- 4.75–27.6 V
- Mounting
- shaft-coupled; face mount 3 × M3 on Ø30 mm
| Pad / pin | Position | Role | Notes |
|---|---|---|---|
| Power supply (+Vcc) | output | Brown wire — Power supply (+Vcc) | |
| Output phase A | output | Black wire — Output phase A | |
| Output phase B | output | White wire — Output phase B | |
| Output phase Z | output | Orange wire — Output phase Z | |
| 0 V (common) | output | Blue wire — 0 V (common) |
CPR counts both edges of both channels on the sensed shaft; on a gearmotor multiply by the gear ratio for the output shaft.
Specifications
Motor performance
No-load, rated-load and stall figures retain their separate test conditions.
Stall torque and current are not continuous ratings. Check the duty cycle and starting load when choosing the driver and power supply.
Thermal limits by level
Product operating conditions, chip ambient ratings, package case limits and junction maxima remain separate.
Motor body
- Product operating range
- -10 to 70 °C
Mechanical dimensions
Reported product dimensions may exclude protruding components. Unknown height does not establish a complete clearance envelope.
- Length
- 59 mm
- Width
- 40 mm
- Reported height / thickness
- 40 mm
Attached generated geometry is an approximate envelope. A generated outline does not establish an electrically verified PCB footprint.
Board connectors
| ID / type | Pins | Pitch | Notes |
|---|---|---|---|
| cablepre-wired 5-conductor Ø5 mm vinyl cable, 0.5 m: Brown +Vcc, Black A, White B, Orange Z, Blue 0 V, shield not connected | 5 | Unknown | — |
Complete structured record
Every available field, including details beyond the summaries. Null means the value has not been established.
Sourcing & files
Supplier offers
US / USD is the target market. Observed price and stock are separate from a delivery quote.
Mouser Electronics
US · USD
$613.53Minimum 1 unit
- Observed stock
- in stock
- Checked
- Oct 18, 2026, 07:30 AM UTC
- Delivery estimate
- Not quoted
This observation is stale or has no verified check time. Recheck with the supplier.
Visit supplier (opens in a new tab)Delivery depends on quantity, postal code and shipping method. A dispatch statement such as “ship today” is not an arrival estimate.
Design files and references
Each source keeps its own verification status. Confirm the part revision and file contents before using it in a design.
Datasheet (opens in a new tab)
Manufacturer reference

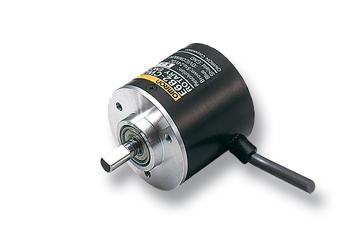

Omron E6B2-C rotary encoder — maker photo (opens in a new tab)
Manufacturer reference
inspected: black Ø40 body with Omron E6B2-C label, aluminium face, steel shaft and side cable exit; matches the datasheet drawing
STEP (generated from datasheet drawing) — link unavailable
Generated asset
cad_check passed
Generated envelope geometry may also exist for this record. It does not replace manufacturer CAD or a verified electrical land pattern.
Source evidence
Document provenance, retrieval dates and the field groups supported by each source.
Supports: spec.constraints.electrical.supply_voltage_max_v, spec.constraints.electrical.supply_voltage_min_v, spec.constraints.thermal.operating_temp_max_c, spec.constraints.thermal.operating_temp_min_c, spec.geometry.cad.bbox.height_mm, spec.geometry.cad.bbox.length_mm, spec.geometry.cad.bbox.width_mm, spec.geometry.cad.envelope_complete, spec.geometry.cad.mesh_path, spec.geometry.cad.step_path, spec.geometry.cad.verification, spec.geometry.dimensions.height_mm, spec.geometry.dimensions.length_mm, spec.geometry.dimensions.width_mm, spec.geometry.other.weight_g, spec.provides.channels, spec.provides.encoder_type, spec.provides.features, spec.provides.index_channel, spec.provides.interface, spec.provides.max_speed_rpm, spec.provides.mounting, spec.provides.output_type, spec.provides.resolution_cpr, spec.provides.resolution_ppr, spec.provides.sensing, spec.provides.shaft_diameter_mm, spec.usage.connectors, spec.usage.pinout, spec.usage.pinout_complete, spec.usage.requirements.other.supply_current_ma
sha256 92025b4b07d8b78722b42e364005685980ea120e534de5fe1f5659964f2307ab
Supports: offers
Related parts
Similar to the Omron E6B2-CWZ6C Rotary Encoder
Adafruit AS5600 Magnetic Angle SensorAdafruit Industries · $5.95ams AS5047P Adapter Board (AS5047P-TS_EK_AB)ams OSRAM · $19.4TZT MT6701 Magnetic Encoder ModuleTZT · $0.84M5Stack Unit Step16 (U198)M5Stack · $6.95Pololu Magnetic Encoder 12 CPR JST SHPololu · $8.95Pololu Magnetic Encoder Kit 12 CPR (Micro)Pololu · $9.95
FAQ
Omron E6B2-CWZ6C Rotary Encoder questions
What voltage powers the Omron E6B2-CWZ6C Rotary Encoder?
Supply range 4.75–27.6 V.
How much does the Omron E6B2-CWZ6C Rotary Encoder cost?
From $613.53 at Mouser Electronics. Prices are observed unit prices before tax and shipping.
What are the Omron E6B2-CWZ6C Rotary Encoder dimensions?
59 × 40 × 40 mm. A STEP model is available for enclosure fit checks.
Where does this Omron E6B2-CWZ6C Rotary Encoder data come from?
Every value in this record is traced to a source — 2 documents including the board and chip datasheets — with the page and table cited per value. Unknowns are left explicit, never guessed.
